Background
Large, cool metal surfaces like ship interiors and chemical storage tanks must be coated to prevent corrosion. However, high ambient humidity causes condensation on the metal surface resulting in blooming or flash rust, between the time the surface is blasted visually clean and when the coating is applied, leading to premature coating failure.
The practical logistics of coating operation also prevent the immediate coating of the surface after cleaning. While the surface is waiting for the coating, small reductions in surface temperature and the presence of high humidity in the surrounding air inside ballast tank result in condensation, which causes immediate corrosion.
Under these circumstances, the internal ballast tank maintenance is considered as one of the Fleet’s significant maintenance burdens.

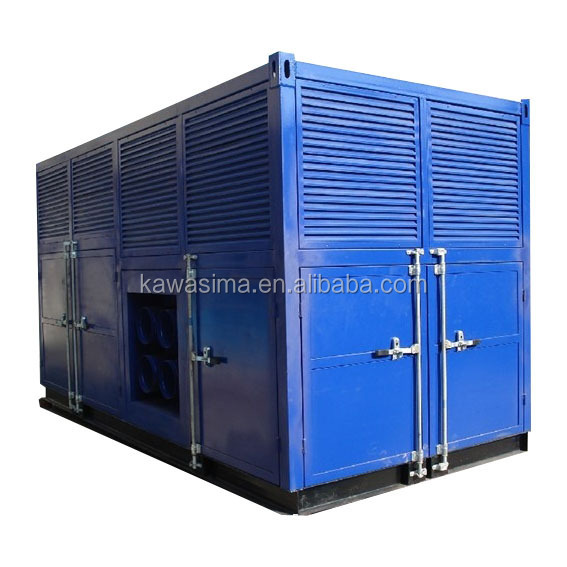

KAWASIMA KAT Series Dehumidifier
KAWASIMA provides contractor stable & continuous dry air, which keeps a cleaned metal surface free from condensation indefinitely, guarantees the blasting and coating quality regardless of the weather. The dehumidifier also provides better coatings for end users and lower costs for contractors.
It integrates both refrigeration and desiccant rotor dehumidification system, which consists of independent dehumidification, refrigeration, heating and air supply system. The dehumidifier is rigid, mobile, 24 hours nonstop working and easy to connect the horse.
Features
****** Combines the benefits of desiccant dehumidifiers with the cooling of DX air conditioners to treat make up air.
****** Designed for transport with all replaceable components accessible through hinged doors and built in supply air duct ports for quick installation of flexible duct work.
****** Heavy duty container type structure can easily be relocated without the concern of it becoming damaged.
****** Available inlet air condition: -10~40oC RH=50~95% for all reason ambient condition operation; Supply air condition: 25±3oC, RH≤45%
****** Automatic operation mode for nonstop working & manual operation mode for commissioning.
****** Semi-hermetic screw compressor, 4 steps energy level adjustment
****** International brand components & fittings, easy for job site replacement & maintain
****** Multiple protection & self trouble shooting program
Technical Specifications
Notice: Below specification table is for reference only. The final technical data is subject to real unit design.
Advance Equipment
Company Gallery
KAWASIMA has exported to over 25 countries globally.
