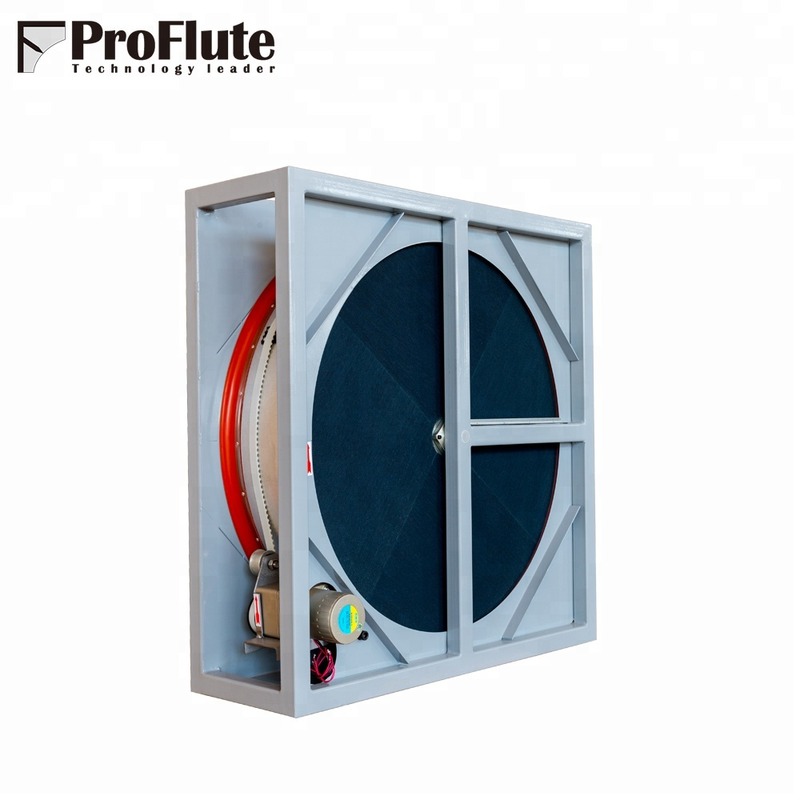

Absorption Wheel Desiccant Cassettes For Desiccant Dehumidifier

1 piece
MOQ
Absorption Wheel Desiccant Cassettes For Desiccant Dehumidifier
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Condition: New
Voltage: 220V/380V 50HZ
Power: According To The Size
Dimension(L*W*H): Customized
Weight: 1 Kg
Warranty: 1 Year
Size: Customized
Application: Dehumidifier
Style: Desiccant Wheel
Material: Silica Gel
Rotor Diameter: 500~1000mm
Rotor Thickness: 200mm
Product Name: Desiccant Wheel Cassettes
Quality: High A+
Property: Absorption
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: The package of desiccant wheel cassettes is polyfoam and wooden case. It will be very safe for shipping
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Product Description

SAT Co. specializes in manufacturing desiccant dehumidification rotors and cassettes. It imports the desiccant media from its Swedish head-company ProFlute to make various specifications of rotors meeting dehumidification requirement of different environment and applications.





















Properties

        • Highest desiccant content

         The PPS rotor has a very high, 82%, active Silica Gel content.

         It can be used for most environment and applications.

  • Fire Resistance

    The rotor media provided by ProFlute AB has been tested according to ASTME test E-84 and achieved a flame-spread index of 0 and a smoke index 0.

  • Unique moisture adsorption

    The density of dry media is approximately 240 kg/m³. The media can pick up approximately 40% of its dry weight as moisture in humid environment. There is no limit for how high relative humidity the rotor can stand as long as the droplets are not introduced into the rotor during operation.

  • Water washable

    The rotor can be washed in the water when the rotor is saturated in humid environment. The PPS rotor should be washed with weak non-alkaline detergent.

  • High surface strength

    The surface compression strength of the rotor is more than 200kpa.

  • Variety in construction

    The various kind of rotor construction could be made according to the customers’ requirement, such as selection of raw material of the metal parts and with or without flange etc. For the large rotors, the knockdown construction will be very convenience for transportation and assembly on site.











Physical Size

So many sizes of rotors can meet dehumidifier manufacturers’ demand and replacement demand for most existing dehumidifiers. The selection software provided by ProFlute can calculate the rotor’s dehumidification capacity, resistance and other characteristic parameter to assist customers to select suitable rotors according to different dehumidification demand.





Diameter, mm Available depth, mm Shaft diameter, mm Delivered knock-down
100~350 50, 100 or 200 20 No
450~550 100,200 or 400 20 No
600~1050 200 or 400 20 No
1150~1950 200 or 400 30 Can
2000~3000 200 or 400 40 Yes











Packaging & Shipping

Polywood Box + Polyfoam



Application

ProFlute rotors are widely used in the following industries:

  • Pharmaceutical manufacturing
  • Food processing and packing
  • Lithium battery and electronic producing
  • Ship manufacturing and bridge corrosion resistant
  • Plastic and chemical products producing
  • Storage and maintenance for military



Company Information

Jiangyin SAT Air Treatment Equipment Co., Ltd (hereafter says “SAT Co.”) was established in March of 2000. From 4th of Jan. 2013, ProFlute AB had become the 100% shareholder in SAT, and SAT became a fully owned sub-company of ProFlute AB. Under the new ownership, SAT and ProFlute continued with its operations. The new ownership structure allows the business to invest further in World Class manufacturing facilities, with intended strategy of broadening the product range with the addition of other components and sub-assemblies.



Since the May of 2004, the SAT Co. imported the desiccant media from his Swedish partner, ProFlute AB, to make desiccant dehumidification rotors and cassettes. The PPS rotors with 82% of silica gel content, the PPM rotors with 45% of molecule sieve content,low temperature regenerative PPC rotors and PPX (super silica gel rotor) can meet the requirement for international high quality rotors by most dehumidifier manufacturers. The rotors also can be used for the replacement for most existing dehumidifiers. As a rotor supplier, the SAT Co. created a good cooperation relationship with our customers with the unique quality, competitive price, excellent service and short period of delivery time so as to mutually explore and serve for Asian market.





Our Services





♦  We have professional engineers to help with the technical solution



♦  The selection software provided by ProFlute can calculate the rotor’s dehumidification capacity, resistance and other characteristic parameter to assist customers to select suitable rotors according to different dehumidification demand.



♦  Offer best service by our professional and  experienced sales representitive

     If any need, just contact :
